Infrastructure piping operates under requirements that vary according to pressure, medium, installation environment, and material. PE systems for water supply and drainage under pressure are covered by the ISO 4427 series, while PE systems for gaseous fuels fall under ISO 4437; PVC-U pressure piping is addressed by ISO 1452.
Such standards influence far more than the finished pipe itself. They affect dimensional targets, process stability, testing, and production records, all of which need to be considered when plastic extrusion equipment is specified. DEKUMA serves this industrial market with extrusion systems configured for different pipe materials and applications.
How Standards Influence Pipe Dimensions
Pipe standards establish requirements around characteristics and test methods rather than simply prescribing a nominal diameter. ISO 4427, for instance, covers PE pressure piping used for water and certain drainage and sewerage applications, while ISO 4437 addresses PE systems for gaseous fuels. The intended service determines which dimensional, material, and performance requirements apply to the finished product.
That distinction matters during extrusion because dimensional consistency begins before the pipe reaches the sizing tank. Melt temperature, pressure, die flow, haul-off speed, and cooling conditions interact continuously. A change in one parameter can influence wall thickness or outside diameter, particularly during high-output production. The machinery specification consequently needs to reflect the required pipe class instead of relying solely on nominal production capacity.
PVC introduces another processing consideration. ISO 1452 covers PVC-U piping systems intended for water supply and buried or above-ground drainage and sewerage under pressure. PVC formulations behave differently from PE during processing, which affects screw configuration, thermal management, and downstream sizing.
Matching Output to Material and Application
Output rate cannot be considered independently from resin type and pipe structure. PE and PVC have different processing characteristics, while pressure-rated products may require tighter control of material distribution than some non-pressure applications. Production planning consequently needs to connect target throughput with resin behavior, diameter, wall thickness, and the applicable standard.
The relationship becomes particularly important when manufacturers operate several product sizes on the same line. Higher throughput can improve production economics, but excessive output relative to the available cooling, sizing, or haul-off capacity can make process control more difficult. A suitable pipe extrusion machine needs enough capacity for the intended range while retaining a controllable operating window.
Dimensional Control Through the Downstream Line
Extrusion does not finish at the die. Vacuum calibration, cooling, traction, and cutting each influence how the hot polymer becomes a dimensionally stable pipe. Vacuum conditions must remain consistent during sizing, while cooling needs to remove heat at a controlled rate without creating undesirable deformation.

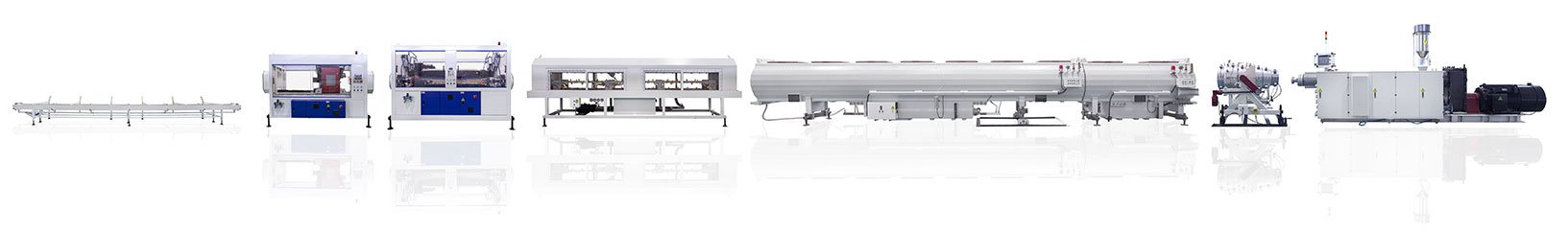

A well-configured plastic extrusion equipment system therefore treats the downstream section as part of the dimensional-control strategy. DEKUMA’s PVC line uses stainless-steel vacuum calibration tanks, dual water circuits, automatic water-temperature and level control, and a quick-response vacuum system. These features address the transition from molten polymer to a dimensionally stable pipe rather than focusing only on the extruder.
Haul-off control introduces another variable. The traction force has to remain synchronized with extrusion speed because changes in pulling conditions can influence the dimensions of the emerging pipe. DEKUMA’s PVC configuration uses an AC servo-driven caterpillar haul-off, with options ranging from two to eight caterpillars and support for pipe diameters from 20 mm to 450 mm. Such downstream specifications demonstrate why line configuration should be assessed as an integrated process.
Quality Documentation and Production Traceability
Infrastructure projects often involve more than dimensional inspection at the end of a production run. Standards specify characteristics and test parameters, while manufacturers may also maintain internal records covering raw materials, processing conditions, inspection results, and batch identification. The exact documentation required depends on the applicable market, customer specification, and regulatory environment.
Digital control can make this information easier to organize. A modern pipe extrusion machine can monitor operating variables while production is underway, allowing manufacturers to associate process conditions with particular production periods. Real-time data is especially useful when a deviation needs to be investigated because the production team can examine process history rather than relying exclusively on a finished-pipe sample.
Conclusion
Infrastructure pipe production is shaped by the service that the finished product must perform, not simply by its nominal diameter. Water, gas, and drainage applications can involve different material systems and standards, which in turn influence extrusion conditions, sizing methods, cooling capacity, haul-off configuration, inspection, and production records. These relationships make plastic extrusion equipment specification an engineering decision tied closely to the intended application.
DEKUMA‘s extrusion portfolio reflects this diversity through separate configurations for PE and PVC processing, with options covering screw design, control architecture, vacuum sizing, traction, cutting, and data monitoring. The appropriate setup depends on the pipe material, dimensions, output target, and applicable technical requirements rather than on one universal machine configuration.
Ultimately, infrastructure standards provide the technical framework, while the extrusion line translates that framework into repeatable manufacturing conditions. A manufacturer can evaluate pipe extrusion machine configurations more usefully by considering the entire production chain against the actual pipe application requirements. DEKUMA provides equipment options within that broader engineering context.
